Arduino/Genuino

Arduino Micro

Art.nr: ArduinoMicro
279 Kr
Lagerstatus: 4
Leveranstid: 1-3 Vardagar
Arduino Micro is a microcontroller board based on the ATmega32u4, developed in conjunction with Adafruit. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB...
  • Tipsa
    Tipsa en vän
  • Önska
Dela:
Arduino Micro is a microcontroller board based on the ATmega32u4, developed in conjunction with Adafruit. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.

The Micro is similar to the Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. Find more informations about the Genuino Micro here.

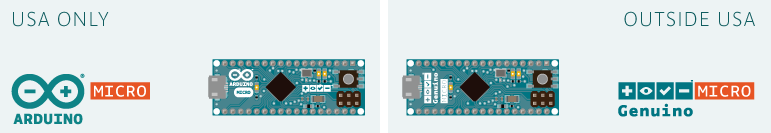

Genuino Micro and Arduino Micro share the same components, characteristics and quality of manufacturing. They are actually the same board under a different brand. Depending on the area of the world where you live you?ll be able to purchase an Arduino Micro or a Genuino Micro. Learn more.

  • Microcontroller:ATmega32u4
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limit): 6-20V
  • Digital I/O Pins: 20
  • PWM Digital I/O Pins: 7
  • Analog Input Pins: 12
  • DC Current per I/O Pi: 40 mA
  • DC Current for 3.3V Pin: 50 mA
  • Flash Memory: 32 KB
  • Flash Memory for Bootloader: 4 KB
  • SRAM: 2.5 KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz
