Bare Conductive

Electric Paint Lamp Kit

Art.nr: SKU-1107
149 Kr 495 Kr
Lagerstatus: 7
Leveranstid: 1-3 Vardagar

Transform any piece of paper into a touch-sensitive lamp with Electric Paint!

Make three paper lamps with no tools, no programming, no special skills required.

  • Tipsa
    Tipsa en vän
  • Önska
Dela:

Transform any piece of paper into a touch-sensitive lamp with Electric Paint!

Make three paper lamps with no tools, no programming, no special skills required.

Transform a paper template into a beautiful lamp in three easy steps. Paint, plug, and play! Use Electric Paint to create custom touch-sensitive buttons connected to our Light Up Board and then use our lampshades to bring your lamp to life.

The Electric Paint Lamp Kit is a great gift for anyone that needs more light in their life!

The Electric Paint Lamp Kit is easy to use and makes a perfect gift. The Touch, Dimmer, and Proximity lamps all show off different aspects of Electric Paint and the Light Up Board and are perfect for your home, office or workshop.

LEVEL: Beginner

About Electric Paint

Your design and electronics projects are about to change forever with this easy to use electrically conductive paint. Paint circuits or use as a conductive adhesive on almost anything including paper, plastic, textiles and conventional electronics.


About the Light Up Board

The Light Up Board is the heart of the Electric Paint Lamp Kit. It works straight out of the box, is powered by USB and requires no programming or special tools. The board’s six bright LEDs and three different modes provide the light for your lamps and the super easy connector system means that you can create lamps on any sheet material.

Included:

1 x Light Up Board
1 x Electric Paint 10ml Tube
1 x Micro USB Cable
1 x Touch Lamp Template
1 x Dimmer Lamp Template
1 x Proximity Lamp Template
1 x Instruction Test Sheet

Head over to bare conductive for more information and instructions!

  • Data Sheets:

Electric Paint MSDS
Electric Paint Technical Data Sheet
Electric Paint Application Notes


Technical details

Electric Paint

• Dries at room temperature in 10-15 minutes
• Must be fully dry to work
• Easily removable with soap and water
• Seal with acrylic paint or spray varnish
• Can last years if treated properly and kept dry
• Works on: paper, cardboard, wood, plastic, glass, plaster, some rubbers, textiles, etc…


Precautions of use:
Children under 14 years of age must be supervised by an adult whilst using this product. This board may be powered over USB, by an approved 3.7V Lithium Polymer cell or a 3.0~5.5V DC power supply. Observe battery polarity markings carefully before use. Do not use on conductive/met-­-al surfaces as this may short circuit the board and damage it. Bare Conductive takes no for external circuitry connected to this board.

ProductGuideImage

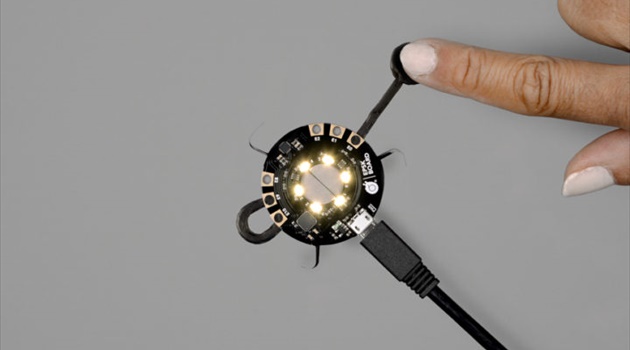

Light Up Board Modes

The Light Up Board can be set to 6 different modes. Three of the modes are used in the Electric Paint Lamp Kit to create a Touch, Dimmer, and Proximity lamp. But the Light Up Board comes pre-programmed with three additional modes for you to explore. Below we explain what these are and how to set the board for each mode.

ProductGuideImage

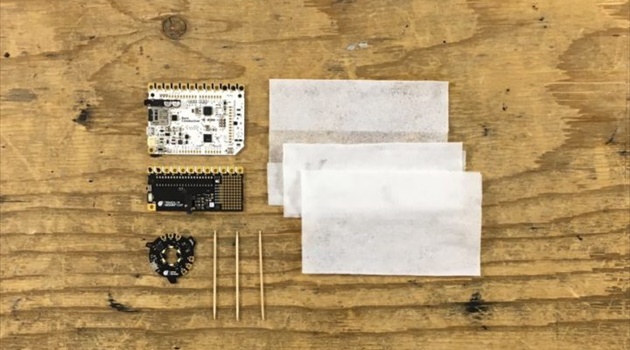

How to clean the electrodes

You might have used your Touch Board, Pi Cap or Light Up Board with some Electric Paint, but now you want to clean it. This is really simple and safe to do and all you need are some baby wipes and toothpicks. This tutorial will guide you on how to clean your board in 3 simple steps.

ProductGuideImage

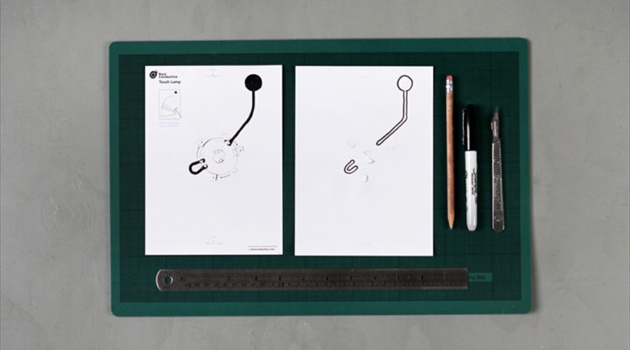

How to cut your own Electric Paint Lamp Kit templates

n this step by step tutorial, we will show you how to cut your own Electric Paint Lamp Kit templates. This will come in handy if you’ve damaged the templates in your Electric Paint Lamp Kit, or if you would like to create your own customised templates. We’ve used the Touch Lamp as an example, but you can also apply this method to the Dimmer and Proximity Lamps.

ProductGuideImage

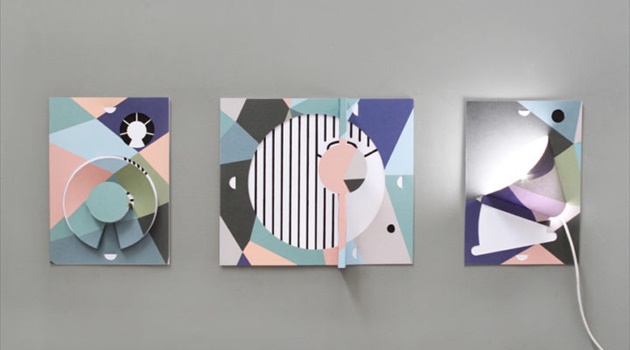

5 ways to customise your Electric Paint Lamp Kit

In this tutorial, we will show you 5 ways to customise your Electric Paint Lamp Kit. This is great if you want to add your own touch to the Electric Paint Lamp Kit, or if you are running a creative workshop. We’ve used the Touch Lamp in our examples, but of course, you can also apply these methods to the Dimmer and Proximity Lamps.
